30m Arduino Distance Sensor Laser RangeFinder Hunting

Basic Info

Model No.: LTM-30m(b220303g1)

grade: Diy, Industrial

warranty period: 3 Years

Meter type: Laser Distance Meters

Support customization: Oem, Odm

place of origin: China

Measuring Unit: Meter/inch/feet

Measuring Time: 0.1~3 Seconds

Laser Class: Class II

Laser Type: 620-690nm, <1mW

IP Rating: IP54

Auto Laser-off: 60 Seconds

Measurement Function: Area/Volume/Pythagoras

Acurracy: ±1 Mm (0.039 Inch)

Temperature: 0~40℃(Work), -25~60℃ (Storage)

Measuring Range: 0.03~30m(98ft)

Additional Info

Packaging: neutral packing

Productivity: 300,000pcs/month

Brand: JRT Measure

Transportation: Air,Express

Place of Origin: China

Supply Ability: 10000pcs/day

Certificate: Yes

HS Code: 9015100000

Port: Chengdu

Product Description

Long Range150M Lazer RangeFinder-B605B M703A
The R150  Laser Rangefinder Area Measurement Instrument has been used to measure distances accurately in the both daily usage and industry application. This Laser Distance Meter can measure for example height of a warehouse, distance between two objects. If you need to store and evaluate data on the PC, you can just buy the R150 150M laser distance measurer module with USB or RS232. If you just need to read the distance, you can take the finished R100 laser range finder.  The R150 150 meter laser distance meter can measure 150m indoors application or with the help of reflection board.

Why JRT Laser RangeFinder Measurer?

1.       Convenient. Can be carried in a small pocket, or in a tool box. The smallest one is just half size of a phone.

2.       High Accuracy. The accuracy can achieve ±1mm.

3.      Multiple Functional Designs. Our laser distance meter can be used to measure distance, area, volume, angle, and Pythagorean measurement. Also can add function: Bluetooth, USB charge, voice, touch screen etc.

4.     Long Range. Compared with traditional measure tapes, our laser distance meters can have a much longer range, up to 200M.

5.     Easy to Use. It is very easy to learn how to use a laser distance meter, it can measure distance with pressing a single button.

6.     Safety. Using a laser distance meter to measure is much safer than using a measure tape, for users do not need to climb up and down.

Technical Specifications:

Type: Laser Meter Tape
Range: 0.03-30 meter
Laser type: 620nm-690nm
Measurement Accuracy:±2mm
Unit: ft./in./m
Battery:1.5V AAA*2
Laser class: Class II, red
Range of working temperature: 0-40℃
Storage temperature range:-20-60℃
Measure time:0.3-4s
Display lighting:LCD
Laser Type: Class 2, 620- 670nm, <1mW
Warranty Period: 1 year
Certification: CE, FCC
Protection level: 1P54
OEM: Acceptable
MOQ:500pcs

More Detailed Pictures

Laser Distance Sensor Diagram

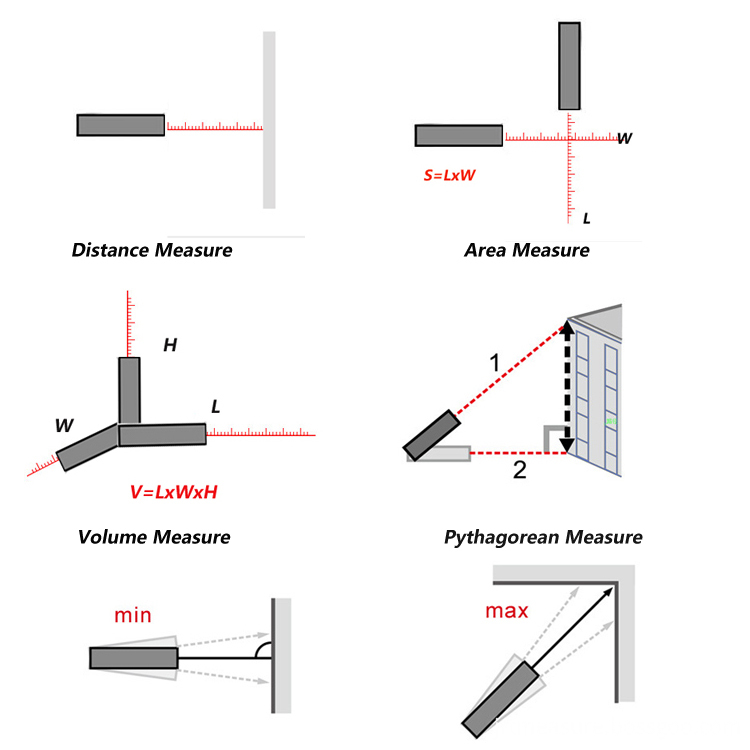

How To Measure
Our laser measurer has Multiply fuctions:
1. Height measure & Length measure &Distance measure
2. Area Measure
3. Volume Measure
4. Pythagorean Measure

Why Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 200m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

How to pack your 30m Laser RangeFinder Sensor?

Chengdu JRT Main Ranging Modules: Industrail Laser Distance Sensors, Laser Distance Meter Modules, Tof LiDAR Sensors.
