60m laser rangefinder sensor with rs232

Basic Info

Model No.: M-703A-60

Additional Info

Packaging: 16pcs/plate, 10 plates/ctn

Productivity: 20000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

Laser rangefinder sensor with rs232

The laser range sensor is designed for non-contact distance measurements: laser distance gauges can support with RS232, laser distance sensors for up to 60m aslo. These rs232 laser distance sensors are used for positioning and type classification in machine building and handling equipment.

Parameters:

Range: 0.03 meters - 60 meters
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 45*25*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.

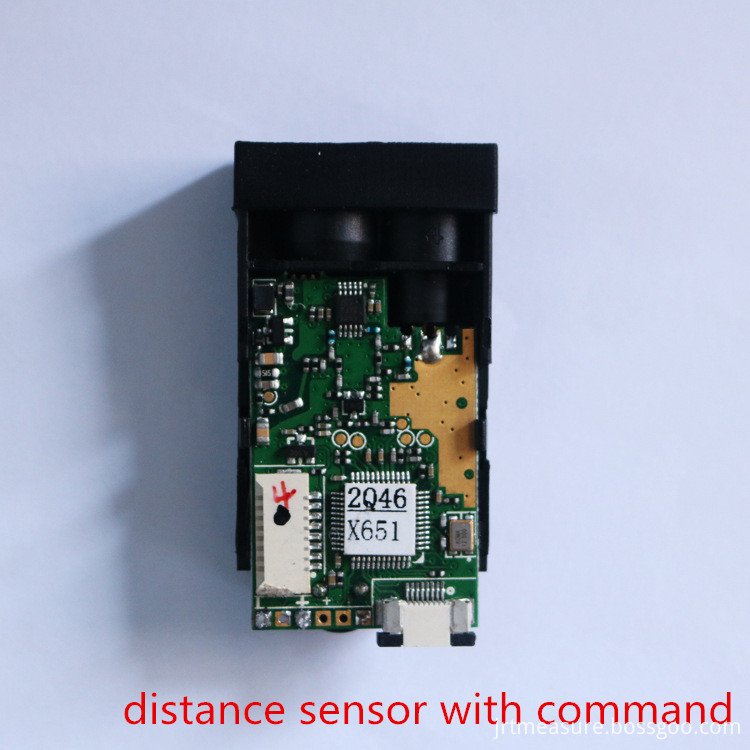

Detailed Pictures:

Why Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 200m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

5.     Materials. We use the high performance price ratio components to guarantee the high quality along with a low price.

6.     Service. All goods will be inspected and tested before shipment and have one year guarantee and a life-time after sales service. Thirdly, customers` satisfaction is the most important thing to us. If you have any problems or questions, please contact us by Trademanager, email, WhatsApp, Skype, telephone. You will get your respond within 12 hours on working days, 24 hours on holidays.

7.     Size. We are keeping research on size of our laser distance module, the smallest size is: 45*25*12mm, 25g for now. We are R&D a new module the size is as small as a pen.
