703A 40m Range Distance cmos Laser Sensor

Basic Info

Model No.: M703A

place of origin: China

principle: Optical Sensor

Output: Digital Sensor

Amplifier type: Optical

jack: Digital, Serial

technology: Optical

application: Industrial Automation

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

703A 40m Range Distance cmos Laser Sensor

703A Laser Distance Sensor's principle is Point-to-Point precise measurement up to 40m. This 40 meter distnace laser range module support single and continuous measure mode.You can use it to make your finished prodcut laser distance meter or for your other industrial application.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors since 2004. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Datasheet

	Middle Module	Big Module
Product Model:	703A	604B/605B
Accuracy:	±1 mm	±3 mm
Measuring Unit:	mm/in/ft	mm/in/ft
Measuring Range:	0.03-40m/50m/60m	0.03-40m/60m/80m/100m/120m/150m
Measuring Time:	0.3-3s	0.3-3s
Laser Class:	Class Ⅱ	Class Ⅱ
Laser Type:	635nm,<1mw	635nm,<1mw
Size:	45*25*12mm	75*40*18mm
Weight:	About 10g	About 21g
Voltage:	DC2.0~3.3V	DC2.0~3.3V
Operating Temperature:	0 C°~40 C°	0 C°~40 C°
Storage Temperature:	-25 C°~60 C°	-25 C°~60 C°

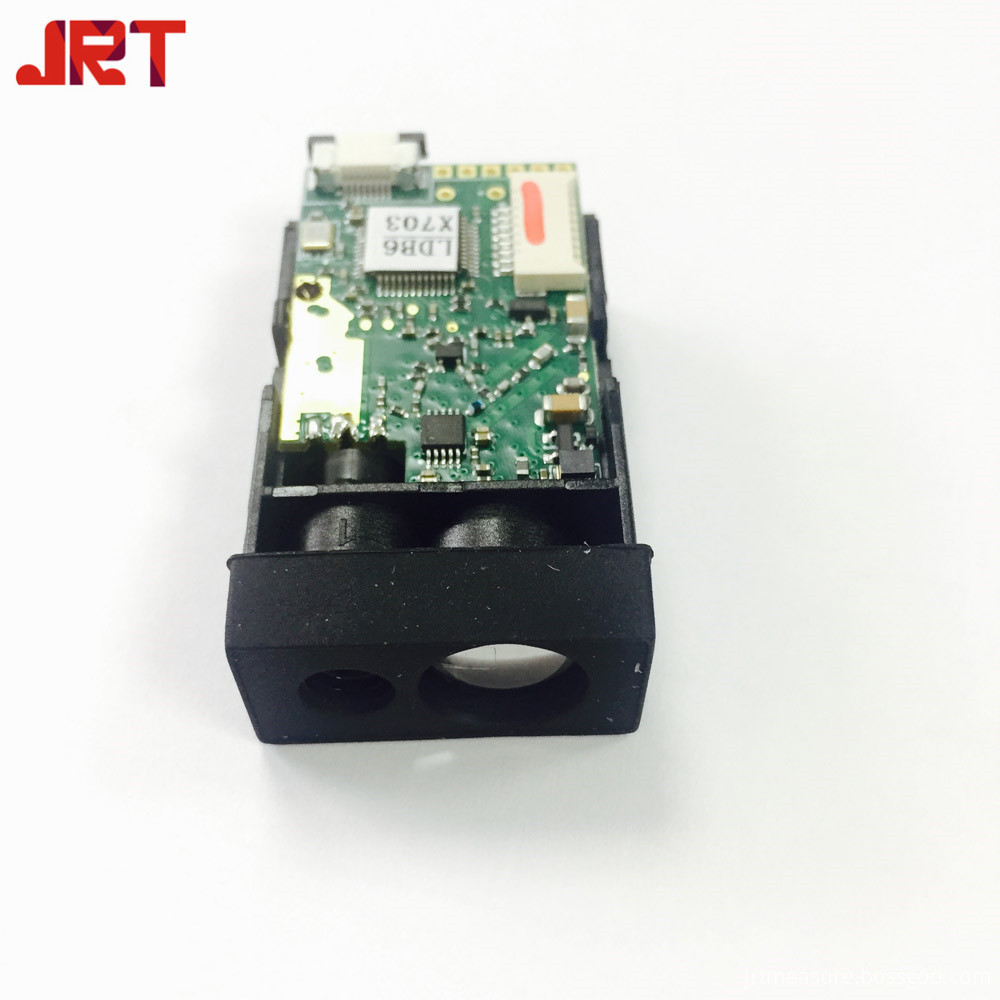

Pictures:



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize

Chengdu JRT Main Ranging Modules: Industrail Laser Distance Sensors, Laser Distance Meter Modules, Tof LiDAR Sensors.
