Laser Distance Beam Sensor with Bluetooth

Basic Info

Model No.: M703B

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

Manufactury Sale Laser Distance Beam Sensor with Bluetooth
 40m laser distance sensor measured the short range from 3cm to 40m, with 2v~3.3v voltage application. The laser distance meter module is the sole part of laser distance meter. Manufactury Sale Laser Distance Beam Sensor with Bluetooth can be used for measuring distance and transmiting data through Bluetooth easily.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 14 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Datasheet

	Middle Module	Big Module
Product Model:	703A	604B/605B/707C
Accuracy:	±1 mm	±1 mm
Measuring Unit:	mm/in/ft	mm/in/ft
Measuring Range:	0.03-40m/50m/60m	0.03-40m/60m/80m/100m/120m/150m
Measuring Time:	0.3-3s	0.3-3s
Laser Class:	Class Ⅱ	Class Ⅱ
Laser Type:	635nm,<1mw	635nm,<1mw
Size:	45*25*12mm	75*40*18mm
Weight:	About 10g	About 21g
Voltage:	DC2.0~3.3V	DC2.0~3.3V
Operating Temperature:	0 C°~40 C°	0 C°~40 C°
Storage Temperature:	-25 C°~60 C°	-25 C°~60 C°

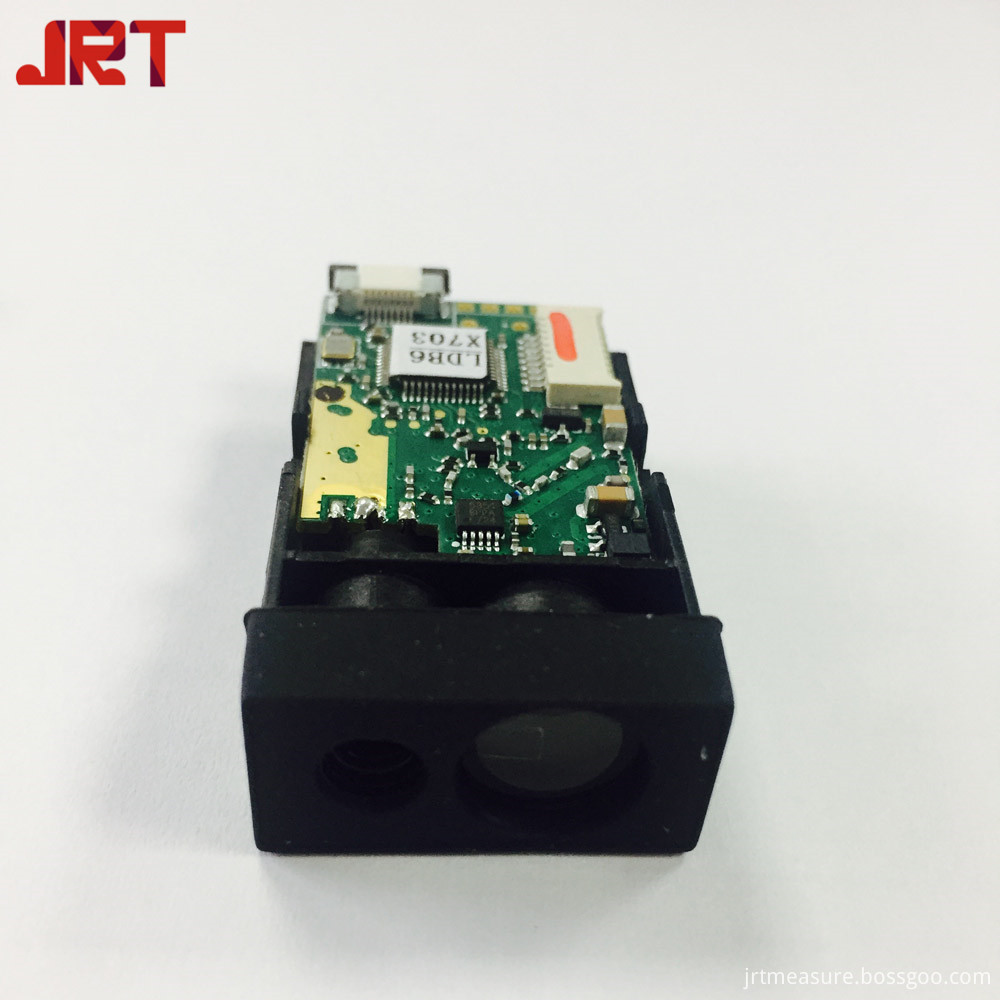

Pictures:



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
