| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB |
| Min. Order: | 1 Piece/Pieces |
| Delivery Time: | 3 Days |
Basic Info
Model No.: JRT
Additional Info
Packaging: neutro-packing
Productivity: 10000pcs/day
Brand: JRT
Transportation: Air
Place of Origin: Chengdu
Supply Ability: 20000pcs/day
Certificate: CE RoHS
HS Code: 9015100000
Port: Chengdu,Shenzhen
Product Description

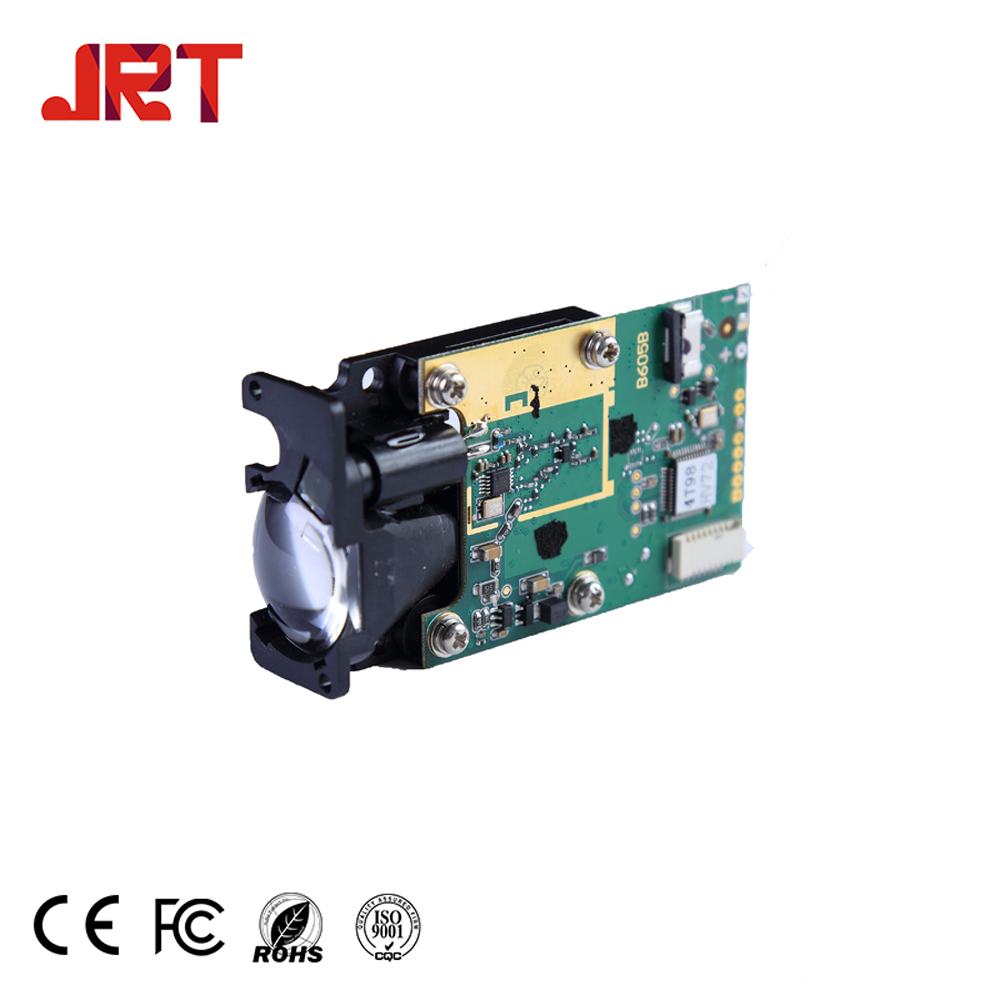

Precision Railway Monitoring Distance Laser Sensor
Laser Distance Meter Module is used to make a Laser Distance Meter. For this one, laser range finder sensor. The final small laser range finder made of this laser distance meter sensor have a very small size, high accuracy, fast respond, it can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications . This laser distance meter module is one of our best selling products.
Technical Specifications
Accuracy: ±1 mm (0.04 inch)
Measuring Unit: meter/inch/feet
Measuring Range (without Reflection): 3cm~40m
Measuring Time:0.1~3 seconds
Laser Class:Class II
Laser Type: 635nm, <1mW
Size: 45x25x12mm
Weight: About 21g
Voltage; DC2.0~3V
Operating Temperature:0-40 ℃ (32-104 ℉ )
Storage Temperature: -25~60 ℃ (-13~140 ℉)
Note: 1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~40 ℃ can be customized.
